Wooden Pattern ppgi Steel Coils
Wooden pattern PPGI (Pre-painted galvanized iron) steel coils are coated steel coils with a wood grain pattern on the surface. PPGI is typically made by coating a base material such as galvanized steel or cold-rolled steel with a layer of paint, often polyester or PVDF (polyvinylidene fluoride) resin-based, which provides protection against corrosion and enhances aesthetic appeal.
The wooden pattern on PPGI coils is achieved through a process called printing or embossing, where the desired wood grain pattern is applied onto the coated steel surface. This gives the appearance of natural wood while retaining the durability and strength of steel.
These coils are commonly used in various applications such as roofing, wall cladding, decorative panels, and other architectural applications where a wood-like appearance is desired along with the durability and easy maintenance of steel.

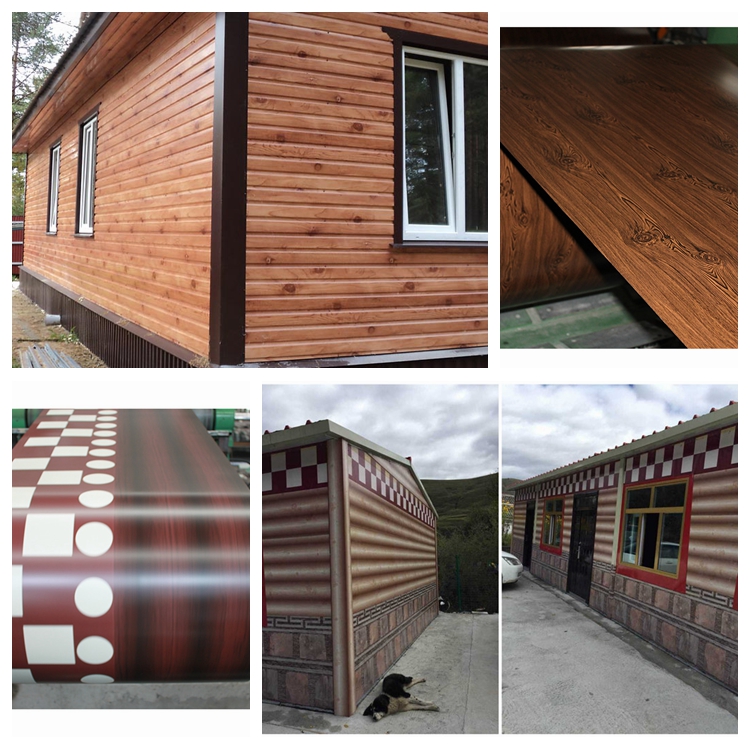

Creative design: creating a unique roof with woodgrain PPGI steel coils
- Aesthetic Appeal: They provide the look of natural wood, enhancing the visual appeal of buildings and structures.
- Durability: The steel base provides strength and durability, while the coating offers protection against corrosion and weathering.
- Low Maintenance: Unlike natural wood, wooden pattern PPGI coils require minimal maintenance, making them suitable for exterior applications.
- Versatility: These coils can be easily fabricated and formed into various shapes and sizes to suit different design requirements.
- Sustainability: PPGI steel is recyclable, making it an environmentally friendly choice compared to some other building materials.

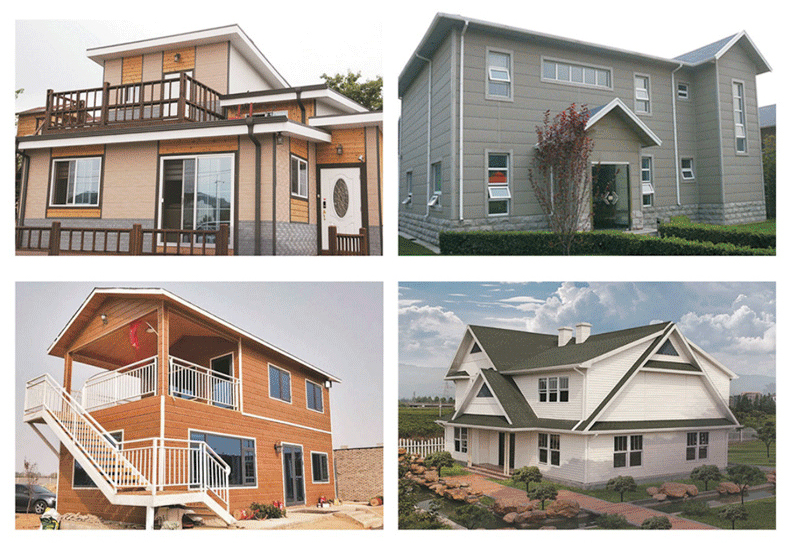

Discover the Beauty of Nature: Transform Your Building with Wood Grain Color Sheet Panels!
The main feature of these panels is their faux wood grain design that provides a comfortable, natural look. They can be used in residential, commercial and industrial buildings to add a warm and rustic feel to buildings.
Wood Grain PPGI Coil
Product Name | Prepainted galvanized steel/ppgi/ color coated steel coil |
PPGI Thickness | 0.15mm-1.2mm |
PPGI Width | 750mm-1250mm ,also available for strip 28mm-600mm |
PPGI Color | According to RAL color or clients sample |
Painting Thickness | PE paint top coating 15-25micron , back coating is 5-10micron if back coating is double ,thickness can be 22micron |
Zinc Coating | 99% pure zinc coating ,zinc weight from 40GSM to 275 GSM |
Quality Control | SGS testing , test zinc coating thickness/PE coating thickness/ T testing and others by every coil |
water proof paper is inner packing, galvanized steel or coated steel sheet is outer packing , side guard plate , then wrapped by seven steel belt . | |
Certificate | ISO 9001:2008 |
